Introduction In the world of construction, efficiency and reliability are everything. Whether you’re working on a high-rise building, a road infrastructure project, or a large residential development, moving concrete quickly and precisely from the mixer to the pour point is one of the most critical — and most challenging — logistics problems on any job site.
The 30HP diesel engine concrete pump machine solves this problem with raw power, portability, and cost-effectiveness. Unlike electric pumps that depend on a stable power supply, diesel-powered concrete pumps can operate anywhere — remote sites, rural areas, mountainous terrain, or locations with no grid access.
This guide covers everything you need to know before buying: how these machines work, what specs matter, which industries use them, how to source them globally, and where to get the best price.
What Is a Diesel Engine Concrete Pump?
Buyer’s Guide
A diesel concrete pump is a machine that uses a diesel engine to power a hydraulic pumping system that pushes liquid concrete through a pipeline or hose to the desired location. The concrete can be delivered horizontally across long distances or vertically to upper floors of a building under construction.
Key components include:
- Diesel engine — the power source (in this case, 30HP)
- Hydraulic system — converts engine power into pumping force
- Hopper — receives concrete from the mixer
- Pumping cylinders — push concrete through the pipeline
- S-valve or gate valve — controls concrete flow direction
- Delivery pipeline — carries concrete to the pour point
Why 30HP? Understanding the Power Rating
The 30HP (horsepower) rating refers to the output power of the diesel engine. This is a mid-range power class that hits a sweet spot for most construction applications:
- Enough power for continuous pumping of standard concrete mixes
- Fuel-efficient compared to larger 50HP+ machines
- Compact and portable — fits on a trailer or small truck
- Lower operating cost than high-horsepower industrial pumps
- Sufficient pressure for vertical lifts up to 80–120 meters depending on model
For small to medium construction projects — residential buildings, bridges, tunnels, retaining walls, and foundation work — a 30HP diesel concrete pump is the ideal choice.
Key Technical Specifications to Evaluate
When comparing 30HP diesel concrete pumps, pay close attention to these specs:
Theoretical Output (m³/h)
This tells you how many cubic meters of concrete the machine can pump per hour. Typical range for 30HP machines: 15–40 m³/h. Higher output = faster pours, but also higher fuel consumption.
Max Pumping Pressure (bar)
Determines how far and how high the concrete can be pushed. Look for 80–120 bar for most applications. Higher pressure is needed for tall buildings or very long horizontal runs.
Max Aggregate Size (mm)
The machine must be compatible with the aggregate (gravel/stone) size in your concrete mix. Most 30HP pumps handle aggregates up to 40–50mm.
Cylinder Diameter & Stroke
Larger cylinders with longer strokes deliver more concrete per cycle. Typical: 160–180mm diameter, 1000–1500mm stroke.
Diesel Engine Brand
Look for well-known engine brands: Cummins, Deutz, Yanmar, Weichai, or Perkins. These offer better reliability, fuel efficiency, and global spare parts availability.
Hydraulic System
Open-loop vs. closed-loop hydraulic systems affect performance and maintenance. Closed-loop systems are more efficient but more complex to service.
Hopper Capacity
Larger hoppers (400–600L) reduce the frequency of mixer truck positioning. Important for high-volume pours.
Pipeline Diameter
Standard delivery pipe diameters: 100mm, 125mm, or 150mm. Larger diameter = less pressure loss over long distances.
Types of 30HP Diesel Concrete Pumps
Trailer-Mounted Concrete Pump
The most common type. The pump unit is mounted on a wheeled trailer that can be towed by a truck or tractor. Easy to move between job sites.
- Best for: Medium-scale construction, road projects, residential buildings
- Mobility: High — can be repositioned daily
- Setup time: 30–60 minutes
Skid-Mounted Concrete Pump
Mounted on a steel skid frame without wheels. Typically used in fixed locations or loaded onto flatbed trucks.
- Best for: Tunnel construction, mining, fixed plant installations
- Mobility: Lower — requires crane or forklift to move
- Advantage: More stable, lower center of gravity
Truck-Mounted Concrete Pump (with boom)
A pump integrated with a truck and a folding boom arm for precise concrete placement. More expensive but highly versatile.
- Best for: High-rise construction, large commercial projects
- Investment level: Significantly higher than trailer-mounted
Applications & Industries
30HP diesel concrete pumps are used across a wide range of construction sectors:
- Residential construction — foundations, slabs, columns, walls
- Commercial buildings — offices, warehouses, shopping centers
- Infrastructure — bridges, tunnels, culverts, retaining walls
- Road construction — concrete road paving, median barriers
- Mining — shotcrete applications, tunnel lining
- Agricultural — irrigation channels, water storage tanks
- Rural & remote projects — anywhere grid power is unavailable
Advantages of Diesel Over Electric Concrete Pumps
| Feature | Diesel Pump | Electric Pump |
|---|---|---|
| Power source | Independent (diesel fuel) | Requires grid or generator |
| Portability | Excellent | Limited by power cable |
| Remote site use | Yes | Difficult |
| Operating cost | Moderate (fuel) | Lower (electricity) |
| Maintenance | Engine + hydraulics | Hydraulics only |
| Cold weather start | Good (with glow plugs) | Excellent |
| Noise level | Higher | Lower |
| Initial cost | Moderate | Moderate to high |
For most developing markets and remote construction sites across Southeast Asia, Africa, the Middle East, and Latin America, diesel is the practical choice.
Sourcing from Global Suppliers: What to Know
The majority of 30HP diesel concrete pumps are manufactured in China, with leading production hubs in Hunan, Shandong, Guangdong, and Henan provinces. Chinese manufacturers offer highly competitive pricing without sacrificing core performance for standard applications.
What to Look for in a Supplier
- Factory audit or verified manufacturer status on Alibaba
- CE certification for EU/European market compliance
- ISO 9001 quality management certification
- Video demonstration of the machine in operation before purchase
- Spare parts availability — confirm key parts (seals, cylinders, valves) can be shipped internationally
- After-sales support — remote technical assistance via video call
Minimum Order & Customization
Most suppliers accept single-unit orders for export. Customization options typically include engine brand selection, pipeline configuration, color, and voltage (for electric start systems).

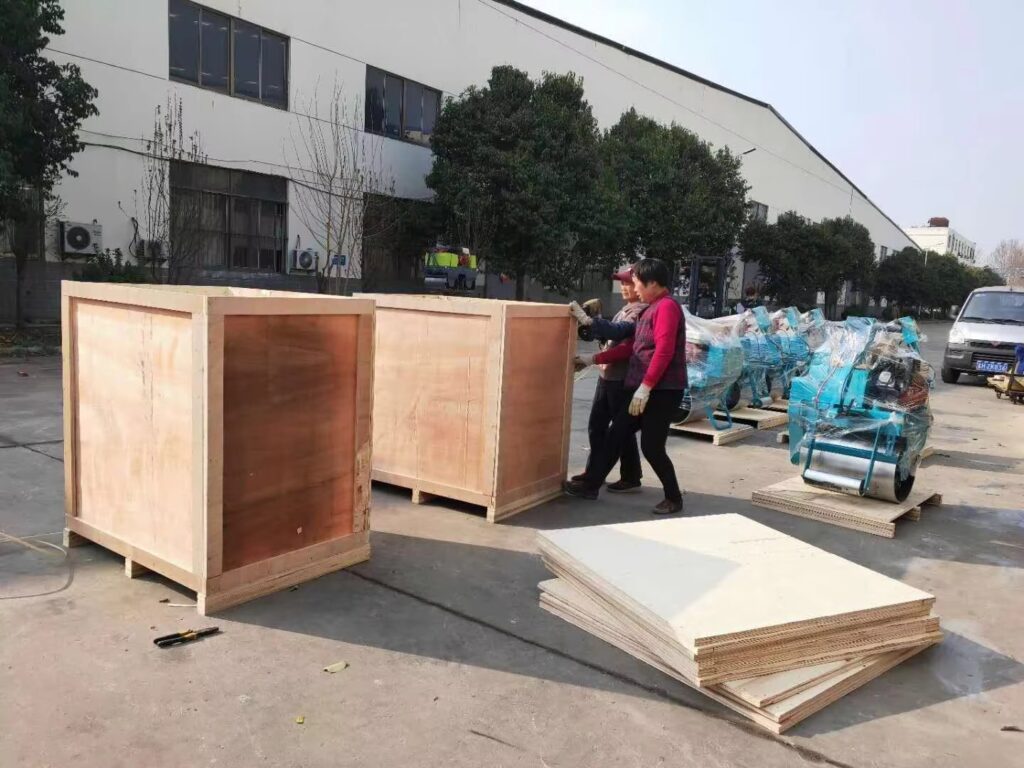

Shipping
These machines ship via sea freight (LCL or FCL). A trailer-mounted 30HP pump typically weighs 1,500–3,000 kg. Factor in:
- Ocean freight cost
- Import duties and taxes
- Port handling and customs clearance
- Inland delivery to job site
Price Range
| Machine Type | Price Range (FOB China) |
|---|---|
| Basic trailer-mounted 30HP | $3,500 – $7,000 USD |
| Mid-range with name-brand engine | $7,000 – $15,000 USD |
| Premium with full hydraulic control | $15,000 – $25,000 USD |
Prices vary significantly based on engine brand, output capacity, pipeline length included, and supplier tier. Always compare at least 3 suppliers before committing.

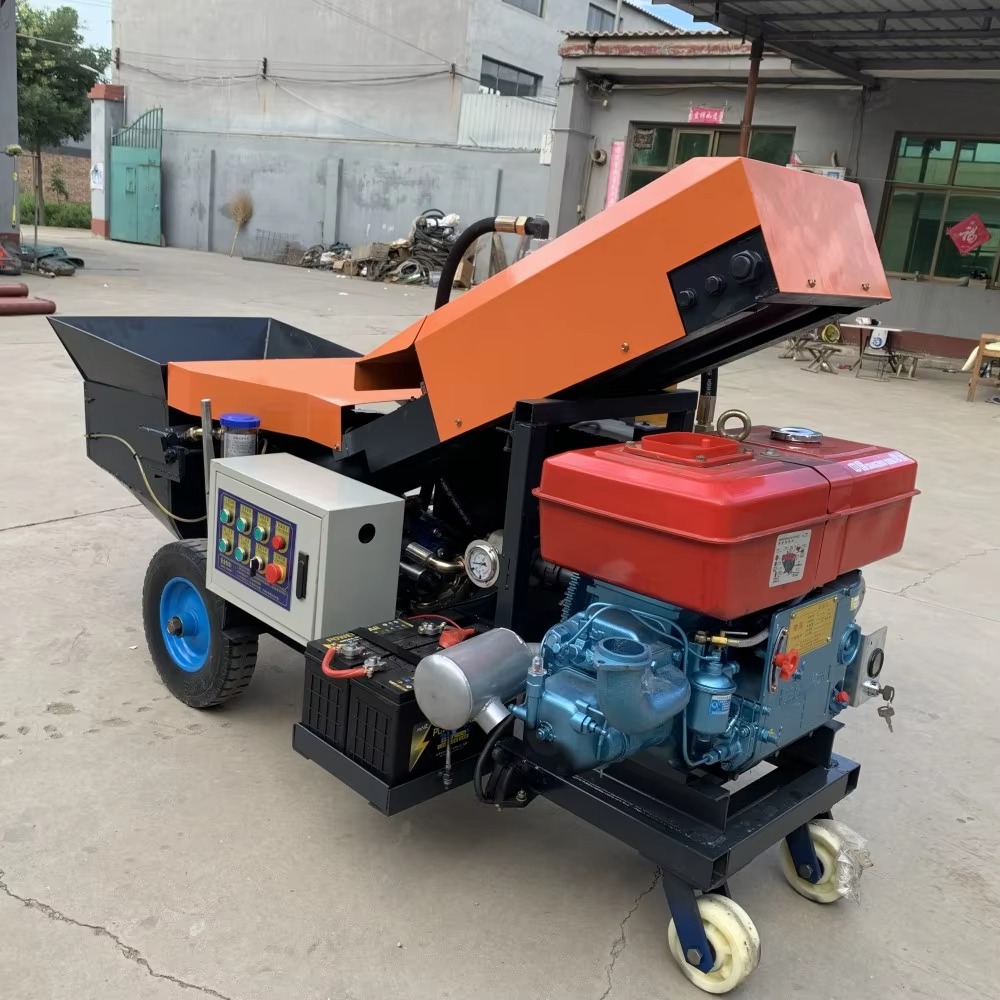

Featured Product: Powerful 30HP Diesel Engine Concrete Pump
MEGA BDM has sourced and listed a verified Powerful 30HP Diesel Engine Concrete Pump Concrete Convey Machine available at a competitive price through our global sourcing network.
Need bulk pricing, custom specs, or a dedicated sourcing agent to negotiate on your behalf?
- 📱 WhatsApp: +855 71 681 5353
- ✈️ Telegram: @megabdm
Frequently Asked Questions
How far can a 30HP diesel concrete pump push concrete?
Horizontally: typically 200–400 meters depending on pipe diameter, mix consistency, and pressure rating. Vertically: 80–120 meters for most models.
What type of concrete can be pumped?
Standard ready-mix concrete with a slump of 100–180mm is ideal. Very dry or very stiff mixes (low slump) are harder to pump and increase wear on the machine.
How many operators does the machine require?
Typically 2 operators — one to manage the pump controls and hopper, one to handle the delivery pipeline at the pour point.
What fuel consumption should I expect?
A 30HP diesel engine typically consumes 5–10 liters of diesel per hour under full load, depending on engine efficiency and pumping conditions.
Can the machine handle fiber-reinforced concrete?
Yes, most 30HP pumps can handle fiber-reinforced concrete (steel or polypropylene fibers) as long as the aggregate size and fiber length are within the machine’s specifications.
What is the typical lifespan of a concrete pump?
With proper maintenance, a quality concrete pump can last 10–20 years. Key wear parts (cylinders, pistons, S-valves) will need periodic replacement.
Conclusion
The 30HP diesel engine concrete pump is one of the most practical and cost-effective pieces of equipment for construction contractors operating in markets where power supply is unreliable or project sites are remote. Its combination of portability, power, and competitive pricing makes it a go-to choice for builders across Southeast Asia, the Middle East, Africa, and beyond.
Whether you’re buying your first pump or expanding your fleet, sourcing from verified global suppliers through MEGA BDM ensures you get competitive pricing, transparent specifications, and dedicated support throughout the procurement process.
